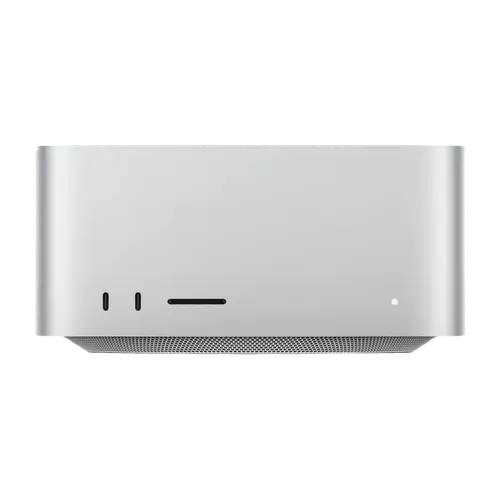

Apple Mac Studio M5 Max Review: A Compact Desktop Built for Heavy Workloads
The Mac Studio with the base M5 Max puts an 18-core CPU (6 super cores and 12 performance cores), a 32-core GPU, a 16-core Neural Engine and hardware ray tracing into a 197 mm square, 95 mm tall aluminum body that weighs 2.7 kg. This configuration pairs 36GB of unified memory at 460 GB/s (configurable up to 128GB) with a 512GB SSD, and it carries four Thunderbolt 5 ports, two USB-A ports, HDMI 2.1, 10Gb Ethernet and Wi-Fi 7. It is a desk-bound desktop for people who already own a display and need sustained CPU and GPU performance, and the trade-off is that it is a fixed, fan-cooled machine with no microphone, no fingerprint sensor and a box that holds only the computer and a power cord.
- Professional and creative workloads
- On-device AI work
- Multi-display setups
- Users who already own a monitor
Pros
- 18-core M5 Max CPU with 6 super cores and 12 performance cores
- 32-core GPU with a 16-core Neural Engine and hardware ray tracing
- 36GB of unified memory at 460 GB/s, configurable up to 128GB
- Four Thunderbolt 5 ports supporting USB 4 and DisplayPort 2.1
- 10Gb Ethernet, Wi-Fi 7, Bluetooth 6 and Thread
- Two USB-A ports, HDMI 2.1 and a front SDXC card slot
- High-impedance headphone jack and a built-in speaker
- Built-in power supply and a 2.7 kg aluminum chassis
Cons
- No microphone
- No fingerprint sensor
- No Kensington lock slot
- No HDMI cable and no VESA mount in the box
- No USB 2 ports
- Warranty period not stated on the specifications page
Who is the Apple Mac Studio M5 Max for?
This is a desktop for someone who wants the computer itself to disappear under a display while still getting workstation-class throughput. The 18-core M5 Max CPU, 32-core GPU and 16-core Neural Engine are aimed at sustained work such as video editing, 3D, software builds and on-device AI, and macOS is what ships on it. Because it is a fixed machine that stays plugged in, it suits a permanent desk rather than a setup that moves, and its front SDXC slot and headphone jack make it convenient for camera and audio work.
What the Apple Mac Studio M5 Max offers
The chassis is aluminum, 197 mm wide and deep and 95 mm tall, with a built-in power supply rated for 100-240V AC and up to 480W of continuous power. Memory is unified, 36GB in this configuration at 460 GB/s, and it can be specified up to 128GB; storage is a 512GB SSD that can be ordered up to 8TB. The back carries four Thunderbolt 5 (USB-C) ports supporting USB 4 and DisplayPort 2.1, two USB-A ports, HDMI 2.1, 10Gb Ethernet and a 3.5 mm headphone jack, while the front adds two USB-C ports and an SDXC card slot. Wireless is Wi-Fi 7, Bluetooth 6 and Thread, and the machine supports up to five external displays on this chip.
What to know before you buy
There is a built-in speaker and a high-impedance headphone jack, but no microphone. The chassis has no fingerprint sensor and no Kensington lock slot. The box contains the Mac Studio and a power cord only, so there is no HDMI cable and no VESA mount, and there are no USB 2 ports. Cooling is handled by a fan, which means the unit is not silent under load. The warranty period is not stated on the specifications page, and the memory type and form factor are not published there either.
Is the Apple Mac Studio M5 Max worth it?
On the spec sheet this is the most capable compact desktop in the category: a new M5 Max with 36GB of fast unified memory, four Thunderbolt 5 ports, HDMI 2.1, 10Gb Ethernet and Wi-Fi 7 in a body that still sits on a desk. What you give up is the base configuration itself, 36GB and 512GB, plus the ports and accessories the sheet marks as absent. Anyone who needs a microphone, an SD reader on the front of a smaller box, a quieter machine or an included display should compare against the other mini PCs here.
Frequently asked questions
How much memory and storage does the base Apple Mac Studio M5 Max have?
This configuration has 36GB of unified memory at 460 GB/s, configurable up to 128GB on the 18-core CPU and 40-core GPU version, and a 512GB SSD that can be ordered up to 8TB.
Which ports does the Apple Mac Studio M5 Max have?
The front has two USB-C ports and an SDXC card slot. The back has four Thunderbolt 5 (USB-C) ports supporting USB 4 and DisplayPort 2.1, two USB-A ports, HDMI 2.1, 10Gb Ethernet and a 3.5 mm headphone jack.
Does the Apple Mac Studio M5 Max have Wi-Fi 7?
Yes. Wireless is Wi-Fi 7 (802.11be) on Apple's N1 chip, along with Bluetooth 6 and Thread networking, and Ethernet is 10Gb Nbase-T.
Does the Apple Mac Studio M5 Max have a microphone or an SD card slot?
It has an SDXC card slot (UHS-II) on the front. There is a built-in speaker and a headphone jack, but no microphone, no fingerprint sensor and no Kensington lock slot.
What comes in the box with the Apple Mac Studio M5 Max?
The Mac Studio and a power cord. There is no HDMI cable, no VESA mount and no display, keyboard or mouse.
