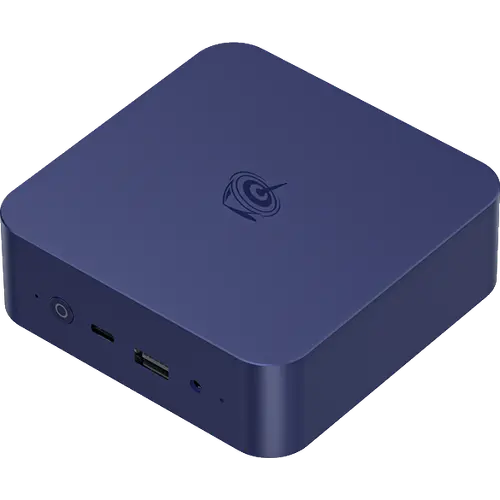

Beelink EQ mini Review: A Wildcat Lake Mini PC With 10G Ethernet and a Built-In Power Supply
The Beelink EQ mini is a compact, low-power mini PC built around Intel Core 3 304 (Wildcat Lake), and its headline is connectivity: a 10 Gigabit Ethernet port, dual Thunderbolt 4 ports and an internal 45W power supply in a 112 mm square chassis. It pairs 12GB of soldered LPDDR5 with 512GB of UFS 3.1 boot storage and two M.2 2280 PCIe 4.0 slots, so it fits always-on home-server, NAS and light office duty rather than heavy workloads. The main trade-offs are a 12GB memory ceiling that cannot be upgraded and a five-core efficiency processor. For a mid-range mini PC, the networking and expandability are what justify it.
- Home servers and NAS front ends
- 10 Gigabit home networks
- Tidy desks with no power brick
- Light office and media use
Pros
- 10 Gigabit Ethernet for fast file transfers and NAS use
- Built-in 45W power supply, no external power brick
- Dual Thunderbolt 4 ports (40Gbps) with DisplayPort output
- 512GB of UFS 3.1 boot storage plus two M.2 2280 PCIe 4.0 slots up to 4TB each
- Triple 4K 60Hz display support from HDMI and dual Thunderbolt 4
- Compact 112 x 112 x 37 mm chassis with a three-year warranty
- Windows 11 Pro preinstalled with an HDMI cable in the box
Cons
- Memory is fixed at 12GB of soldered LPDDR5 and cannot be upgraded
- Five-core, low-power Core 3 304 is not built for heavy workloads or gaming
- Only one HDMI output; extra displays need the Thunderbolt ports
- Wi-Fi 6 rather than Wi-Fi 7
- No SD card slot, fingerprint sensor or Kensington lock slot
Who is the Beelink EQ mini for?
This is a machine for someone who values networking and low power draw over raw speed. The Core 3 304 has five cores and five threads and is an efficiency part tuned for a box that stays on all day: a file server, a home-lab node, a NAS front end or a quiet office desktop for documents, browsers and video calls. The 10 Gigabit Ethernet port is the standout, because it moves large files across a fast home network at speeds a typical mini PC cannot reach, and the dual Thunderbolt 4 ports open the door to fast external drives and docks. At 112 x 112 x 37 mm it disappears behind a monitor or into a media cabinet.
What the Beelink EQ mini offers
Connectivity leads the list. There is one 10 Gigabit Ethernet port, Wi-Fi 6 (MediaTek MT7922) and Bluetooth 5.2, plus two Thunderbolt 4 ports that carry data at 40Gbps and DisplayPort 1.4 for external monitors; together with the single HDMI output, the machine can drive up to three 4K 60Hz displays. The 45W power supply is built into the chassis, so the machine takes a standard AC cable instead of a laptop-style brick, which keeps a desk or shelf tidy. Storage is unusually flexible: 512GB of onboard UFS 3.1 flash holds the operating system while two free M.2 2280 PCIe 4.0 slots, up to 4TB each, are ready for expansion. Windows 11 Pro comes preinstalled, an HDMI cable is included and Beelink backs the unit with a three-year warranty.
What to know before you buy
The processor is an efficiency chip with one performance core and four low-power cores, so it is not the machine for sustained rendering, large compiles or serious gaming. Memory is fixed at 12GB of LPDDR5 soldered to the board, and 12GB is also the maximum, which limits how many virtual machines or containers it can host. There is only one HDMI output, so a triple-display setup depends on the two Thunderbolt 4 ports, and the wireless side is Wi-Fi 6 rather than Wi-Fi 7. There is no SD card slot, no fingerprint sensor and no Kensington lock slot, and the boot storage is onboard flash rather than a replaceable SSD.
Is the Beelink EQ mini worth it?
Judged as a processor purchase it looks modest, and judged as a networking and storage platform it looks like good value. Very few machines this size offer 10 Gigabit Ethernet, dual Thunderbolt 4, two free M.2 slots and an internal power supply together, and those are exactly the features that matter for an always-on box on a fast home network. Anyone who needs CPU headroom for compiles, virtual machines or content creation should step up to a Ryzen or Core Ultra mini PC instead, and anyone who wants upgradable memory will find the fixed 12GB restrictive. For a quiet, low-power server or a clean desktop that moves files fast, it makes a strong case.
Frequently asked questions
Does the Beelink EQ mini have 10 Gigabit Ethernet?
Yes. It has a single 10 Gigabit Ethernet port for fast large-file transfers and NAS connections, alongside Wi-Fi 6 and Bluetooth 5.2.
Can you upgrade the memory in the Beelink EQ mini?
No. It comes with 12GB of LPDDR5 soldered to the board, and 12GB is also the maximum, so the memory cannot be expanded.
How much storage can the Beelink EQ mini hold?
It ships with 512GB of onboard UFS 3.1 flash for the operating system and has two free M.2 2280 PCIe 4.0 slots that take up to 4TB each.
How many monitors can the Beelink EQ mini drive?
Three. One HDMI output runs at up to 4K 60Hz, and each of the two Thunderbolt 4 ports carries DisplayPort 1.4 for the other displays.
Does the Beelink EQ mini need an external power adapter?
No. The 45W power supply is built into the chassis, so it runs from a standard AC cable rated for 100-240V.
What operating system does the Beelink EQ mini come with?
It ships with Windows 11 Pro preinstalled.
