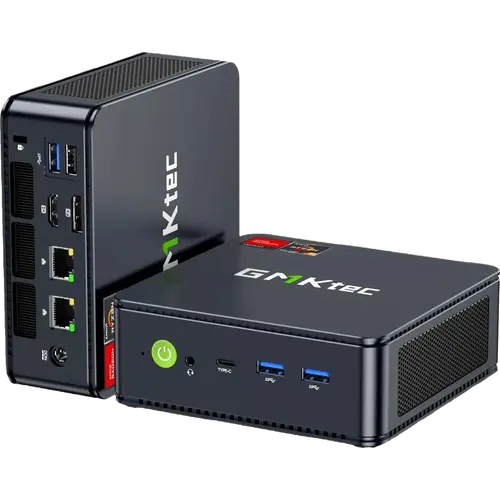

GMKtec NucBox M6 Ultra Review: Dual 2.5G Networking and Triple 8K Output on a Budget
Six Zen 4 cores, 32GB of DDR5 in dual channel and two M.2 slots, in a box small enough to hide behind a monitor.
The NucBox M6 Ultra is the value pick for people who want a real desktop replacement rather than a thin client. The Ryzen 5 7640HS gives six Zen 4 cores with Radeon 760M graphics, and unlike most machines at this price it ships with 32GB of DDR5 already in dual channel, two M.2 2280 slots, dual 2.5G Ethernet and a full-featured USB4 port that drives a third display up to 8K. That combination makes it as attractive for a Proxmox or pfSense box as for a browsing and light gaming machine. The weak points are a one-year warranty, a support team owners describe as quick to blame other hardware, and fan noise that divides opinion.
- Home lab and Proxmox servers
- Firewall and dual-network setups
- Multi-monitor desktops
- Retro and light modern gaming
Pros
- Six-core Ryzen 5 7640HS up to 5.0GHz with Radeon 760M graphics
- 32GB of DDR5 already installed in dual channel, expandable to 128GB
- Two M.2 2280 slots supporting up to 8TB of storage
- Dual 2.5G Ethernet for firewall, NAS and virtualisation use
- Full-featured USB4 port plus HDMI 2.0 and DisplayPort 1.4 for three displays
- Wi-Fi 6E and Bluetooth 5.2
- Three selectable power modes at 35W, 45W and 50W
- Powered over USB-C rather than a proprietary barrel jack
- Windows 11 Pro included and Linux friendly
Cons
- Only a one-year warranty
- Several reports of units failing or crashing within the first month
- Support described as quick to blame other components
- Fan noise divides owners and may need a Windows power-profile tweak
- M.2 slots are PCIe 3.0 rather than 4.0
- Integrated graphics are not a substitute for a discrete GPU
- No SD card reader, speakers or microphone
Who is the GMKtec NucBox M6 Ultra for?
It suits someone who wants more than a browsing box for the money. The Ryzen 5 7640HS runs six cores and twelve threads up to 5.0GHz with Radeon 760M graphics at 2,600MHz, and GMKtec offers three selectable power modes at 35W, 45W and 50W so you can trade noise against performance. Memory arrives as 32GB of DDR5 across two SODIMM slots, so it is already dual channel out of the box and can reach 128GB, and there are two M.2 2280 slots for up to 8TB of storage. The networking is what sets it apart at this price: two 2.5G Ethernet ports, which owners use for firewall, router and virtualisation duty, plus Wi-Fi 6E and Bluetooth 5.2. Display output covers three screens through HDMI 2.0, DisplayPort 1.4 and a full-featured USB4 port. It is also powered over USB-C rather than a barrel jack.
What buyers love
The price-to-specification ratio dominates the feedback, with owners repeatedly saying they got far more machine than expected, particularly when bought on sale. Setup is described as very easy, and the compact footprint gets praised for disappearing behind a monitor. Gaming works better than buyers expect from integrated graphics: owners run retro emulation up to PlayStation 2 comfortably and report modern titles running smoothly enough at moderate settings, with plenty of storage included for a games library. Home lab users are notably happy, with one running Proxmox and media transcoding and reporting it handled everything thrown at it. The triple-display support is called out as impressive even by owners only using two 4K monitors.
What to know before you buy
Fan behaviour is the most contested point. Several owners describe the fan as super quiet, another says it is noticeably louder than a Beelink they owned previously, and one found the fans excessive until they capped the processor's maximum power in Windows power settings, which suggests the default profile runs the chip harder than it needs to. Reliability shows a pattern of early failures rather than gradual decline: one unit was dead after sitting powered off for a week, another crashed persistently, and a third blanked its display at random. In each of those cases a replacement worked correctly, so the fault rate rather than the design appears to be the issue, and the warranty is only one year. Support draws specific criticism, with a retired IT manager describing the team blaming a brand-new monitor rather than investigating the PC. Also note the graphics ceiling: the Radeon 760M has eight compute units and is not a substitute for a discrete card, and the M.2 slots are PCIe 3.0 rather than 4.0.
Is the GMKtec NucBox M6 Ultra worth it?
For a home lab, a firewall, a multi-monitor desktop or a compact media and light gaming machine, it is one of the better value propositions in the category, mostly because of what is already installed. Getting 32GB of dual-channel DDR5, a 1TB drive, a second free M.2 slot and two 2.5G network ports without paying extra is unusual at this price, and the USB4 port keeps the display options open. Buy it on discount, buy it where returns are easy given the early-failure reports, and expect to spend ten minutes tuning the power profile if the fan bothers you. If you need discrete graphics, PCIe 4.0 storage or a longer warranty, spend more elsewhere.
Frequently asked questions
How much memory does the GMKtec NucBox M6 Ultra come with?
This configuration ships with 32GB of DDR5 at 4800 MT/s, supplied as two 16GB SODIMM modules so it runs in dual channel from the start. Both slots are socketed and the machine supports up to 128GB.
How many monitors can the GMKtec NucBox M6 Ultra drive?
Three. It combines HDMI 2.0 and DisplayPort 1.4 with a full-featured USB4 port, and GMKtec rates the USB4 output at up to 8K at 60Hz with 4K at 60Hz on the other two.
Why does the GMKtec NucBox M6 Ultra have two Ethernet ports?
Both are 2.5G, which lets you separate two networks on one machine. Owners use that for firewall distributions such as pfSense and Untangle, for NAS and virtualisation hosts, and for redundancy in a small office.
Is the GMKtec NucBox M6 Ultra good for gaming?
For light and retro gaming, yes. The Radeon 760M has eight compute units running at up to 2,600MHz, and owners report emulation up to PlayStation 2 running well and modern titles playable at moderate settings. It is not a replacement for a discrete graphics card.
Can you upgrade storage in the GMKtec NucBox M6 Ultra?
Yes. It has two M.2 2280 PCIe 3.0 slots, one occupied by the 1TB drive, and GMKtec rates the pair for up to 8TB total.
Is the GMKtec NucBox M6 Ultra noisy?
Owner opinion is split. Many describe the fan as very quiet, while others find it audible under load, and one owner resolved it by lowering the maximum processor state in Windows power settings. The three selectable power modes also let you trade performance for quieter running.
