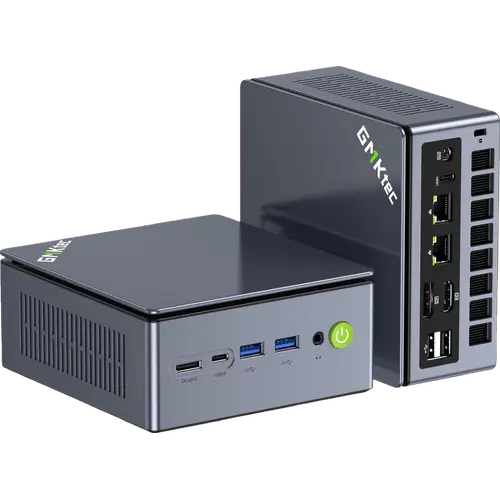

GMKtec NucBox M7 Ultra Review: The Quiet Ryzen 7 PRO Mini PC With a Front OCuLink Port
Dual USB4, dual 2.5G Intel LAN and an OCuLink port on the front make this aluminum box far more expandable than its size suggests, as long as the Zen 3+ silicon is enough for you.
The NucBox M7 Ultra is a compact desktop for people who want a quiet machine now and an upgrade path later: the AMD Ryzen 7 PRO 6850U with Radeon 680M graphics handles office work, virtualization and light gaming, while the front OCuLink port opens a PCIe Gen4 x4 lane to an external GPU without replacing the computer. Two SODIMM slots (64 GB maximum), two M.2 2280 PCIe 4.0 slots, dual 2.5G Intel LAN and two USB4 ports give it the connectivity of a much larger box. The trade-off is generation: this is a Zen 3+ chip with no NPU, so buyers wanting on-device AI acceleration or a discrete GPU out of the box should look elsewhere. For a quiet, VESA-mountable Windows 11 Pro workstation or home server, it is strong value.
- Home lab and Proxmox users
- Small form factor desktops
- eGPU tinkerers
- Quiet office workstations
Pros
- Front OCuLink port gives an external GPU a full PCIe Gen4 x4 link
- Two USB4 Type-C ports with DisplayPort 1.4 and 100 W power delivery
- Dual 2.5G Intel I226-V Ethernet, ideal for routers, firewalls and home servers
- Runs very quietly thanks to the Hyper Ice Chamber 2.0 dual-fan cooling
- Upgradable by design: two SODIMM slots to 64 GB and two M.2 2280 PCIe 4.0 slots
- Quad display output with HDMI 2.1 at 8K 60 Hz and DisplayPort 2.0
- Windows 11 Pro preinstalled, with HDMI cable and VESA mount in the box
Cons
- Zen 3+ processor with no NPU, so no on-device AI acceleration
- Memory tops out at 64 GB of DDR5-4800
- USB4 ports are not Thunderbolt certified
- Only a one-year warranty, and one owner had a unit fail within two months
- A Windows activation hiccup on first boot required contacting support
- No SD card reader and no fingerprint sensor
- Integrated graphics are not enough for PC-tethered VR
Who is the GMKtec NucBox M7 Ultra for?
This is a machine for people who need real desktop capability in a box that measures 132 x 125 x 58 mm and weighs a little over half a kilo. The eight-core, sixteen-thread Ryzen 7 PRO 6850U boosts to 4.7 GHz and pairs with Radeon 680M integrated graphics, which is enough for browsers full of tabs, development tools, virtual machines and older or lighter games. The dual 2.5G Intel LAN ports push it into territory most mini PCs never reach: firewalls, soft routers, NAS front ends and link aggregation. Owners describe running Proxmox with virtual machines and Docker containers, a load generator for database work, and Visual Studio with a SQL server, all without stutter. The aluminum chassis and the VESA bracket in the box also mean it disappears behind a monitor, which is exactly how several owners set it up.
What buyers love
The single most repeated comment is how quiet it is. The Hyper Ice Chamber 2.0 dual-fan cooling keeps noise low enough that owners describe the machine as silent while multitasking, and several specifically pair the words quiet and fast. The second theme is the OCuLink port: one owner calls it an upgrade path that means you do not have to replace the mini PC when your interests move toward GPU computing or local language models, and it runs at PCIe Gen4 x4 rather than through a USB tunnel. Expandability is the third: the top cover comes off without tools, and owners report dropping a second NVMe drive in immediately. Windows 11 Pro arrives preinstalled, and the people who wipe it for Linux or Proxmox report no obstacles. GMKtec support also earns unprompted praise, with an owner reporting a Windows licensing problem resolved the same day.
What to know before you buy
Two owners hit a Windows activation problem on first boot and needed to email GMKtec for a new key, which was resolved quickly but is still a first-hour annoyance. One unit failed within two months, with the graphics output dying and the buyer returning it, so the one-year warranty is worth registering. Expect a ceiling on the graphics: the Radeon 680M is capable for its class, but one owner bought the machine for PC-tethered VR through Steam and found it unsuitable. On paper, the limits are generational rather than sloppy: the Ryzen 7 PRO 6850U is a Zen 3+ part with no NPU, memory tops out at 64 GB of DDR5-4800, the USB4 ports are not Thunderbolt certified, and there is no SD card reader or fingerprint sensor. The 512 GB drive in this configuration is also modest, though the second M.2 2280 PCIe 4.0 slot makes that easy to fix. Power comes from an external 120 W brick (19 V, 6.32 A), not an internal supply.
Is the GMKtec NucBox M7 Ultra worth it?
Judged against other mini PCs at its tier, the M7 Ultra buys you connectivity that usually costs more: front OCuLink, two USB4 ports carrying DisplayPort 1.4 and 100 W power delivery, HDMI 2.1 at 8K 60 Hz, DisplayPort 2.0, quad display output, dual 2.5G Intel I226-V LAN, Wi-Fi 6E and Bluetooth 5.2, plus a Kensington lock slot and a 3.5 mm combo audio jack. You give up the newest CPU generation and its NPU, and you accept a short warranty. If your workload is virtualization, networking, general desktop work or emulation, that is a good trade. If you want AI acceleration built in or serious gaming with no external GPU, spend the extra on a newer chip.
Frequently asked questions
Can you connect an external GPU to the GMKtec NucBox M7 Ultra?
Yes. There is an OCuLink port on the front panel that gives an eGPU dock a PCIe Gen4 x4 link, which is faster and lower latency than tunneling graphics over USB. The two USB4 ports are an alternative route for docks that need one.
Does the M7 Ultra support Thunderbolt?
It is not Thunderbolt certified. Instead it has two USB4 Type-C ports that carry data, DisplayPort 1.4 video and 100 W power delivery, which covers most Thunderbolt use cases apart from officially certified accessories.
How much memory and storage can the M7 Ultra take?
Two SODIMM slots accept up to 64 GB of DDR5-4800 in dual channel, and this configuration ships with 32 GB. Storage runs through two M.2 2280 PCIe 4.0 x4 slots, with a 512 GB SSD fitted, so a second drive can be added without removing the first.
How many monitors can it drive?
Four at once. Video comes from HDMI 2.1 at up to 8K 60 Hz, DisplayPort 2.0, and DisplayPort 1.4 over each of the two USB4 ports.
Does the M7 Ultra run Linux?
It ships with Windows 11 Pro preinstalled and GMKtec also lists Ubuntu support. Owners report wiping Windows for Linux and for Proxmox virtualization without trouble.
Is the GMKtec NucBox M7 Ultra noisy?
It is one of the quietest things about the machine. The Hyper Ice Chamber 2.0 design uses a top and a bottom fan with a copper base, and owners consistently describe the mini PC as quiet even while multitasking.
