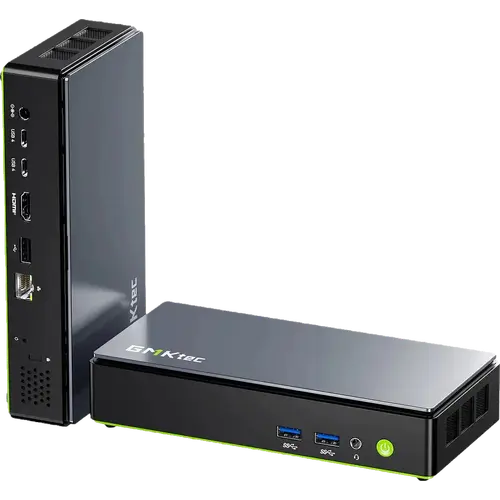

GMKtec NucBox K13 Review: A Lunar Lake Mini PC With Dual USB4 and 5G Ethernet
The GMKtec NucBox K13 is a compact Windows 11 Pro desktop built around an Intel Core Ultra 7 256V, pairing Arc 140V graphics with a 47 TOPS NPU for on-device AI work. Its standout connectivity includes two full-function USB4 ports, a 5 Gbps Ethernet port and triple 4K display output, all in a small chassis that can mount behind a monitor. The main trade-off is flexibility: the 16GB of LPDDR5X memory is soldered and not upgradeable, and there is no Thunderbolt or dedicated DisplayPort connector.
- Compact home and office desktops
- Local AI and light creative work
- Home lab and virtualization
- Multi-display productivity
- VESA-mounted desks
Pros
- Intel Core Ultra 7 256V with Arc 140V graphics and a 47 TOPS NPU (115 TOPS total)
- Two full-function USB4 ports at 40Gbps with 100W power delivery and DisplayPort output
- Triple 4K display output through HDMI 2.1 and dual USB4
- 5 Gbps Ethernet, Wi-Fi 6E and Bluetooth 5.2
- 16GB of LPDDR5X at 8533 MT/s with a 512GB PCIe 4.0 M.2 drive and a second M.2 slot
- Windows 11 Pro preinstalled, with an HDMI cable and VESA mount included
- Compact 186 x 88 x 36.6 mm chassis weighing about 523g
Cons
- 16GB of LPDDR5X memory is soldered and not upgradeable
- No Thunderbolt, no dedicated DisplayPort connector and no OCuLink
- External 100W power adapter rather than an internal supply
- One-year warranty
- No SD card slot, fingerprint sensor, speakers or microphone
Who is the GMKtec NucBox K13 for?
This is a mini PC for a desk that has to stay small without giving up current hardware. The Intel Core Ultra 7 256V is a Lunar Lake part with eight cores and eight threads running up to 4.8 GHz, backed by Intel Arc 140V graphics, so it covers office work, development tools, media playback and light creative tasks. A dedicated NPU rated at 47 TOPS, and up to 115 TOPS across the whole platform, is what makes it a machine for on-device AI features and small local models rather than a cloud round trip. At 186 x 88 x 36.6 mm and about 523g, and with a VESA mount in the box, it can sit behind a monitor or under a desk.
What the GMKtec NucBox K13 offers
The connectivity is the standout. Two full-function USB4 Type-C ports run at 40Gbps and carry data, DisplayPort 1.4 video and 100W power delivery, and a single HDMI 2.1 TMDS output completes a setup that can drive up to three 4K displays. Networking is unusually fast for this size, with Wi-Fi 6E, Bluetooth 5.2 and a 5 Gbps RJ45 Ethernet port, the first of its kind on a GMKtec mini PC. The port selection is generous: two USB 3.2 Gen2 Type-A ports, a USB 2.0 port and a 3.5 mm audio jack sit on the front. Storage is a 512GB PCIe 4.0 M.2 2280 NVMe drive, and a second M.2 slot allows expansion up to 16TB. It ships with Windows 11 Pro, a power adapter, an HDMI cable and a VESA mount.
What to know before you buy
The main limitation is upgradeability: the 16GB of LPDDR5X-8533 memory is soldered to the board, so the configuration you buy is the configuration you keep. Graphics are integrated only, there is no Thunderbolt certification, and because there is no dedicated DisplayPort connector or OCuLink port, an external GPU has to connect through USB4. Power comes from an external 100W adapter rather than a built-in supply, and the warranty is one year. The chassis also leaves out an SD card slot, a fingerprint reader, built-in speakers and a microphone, so audio and biometric sign-in need external hardware.
Is the GMKtec NucBox K13 worth it?
It earns its place when current Intel silicon, USB4 with power delivery and fast networking matter more than upgrading later. The Core Ultra 7 256V with Arc 140V graphics and its NPU puts it well above the budget N100 and N150 mini PCs, and the dual USB4 ports, 5 Gbps Ethernet and VESA mount make it easy to live with on a small desk or behind a monitor. If you need to add memory over time, a second Ethernet port or a longer warranty, a larger or more flexible machine will serve you better. For a fixed compact desktop that runs Windows 11 Pro and handles AI-accelerated everyday work, it is a well-rounded pick.
Frequently asked questions
What processor does the GMKtec NucBox K13 use?
It uses the Intel Core Ultra 7 256V, a Lunar Lake processor with eight cores and eight threads clocking up to 4.8 GHz, paired with Intel Arc 140V graphics and an Intel AI Boost NPU rated at 47 TOPS.
Can you upgrade the memory on the NucBox K13?
No. The 16GB of LPDDR5X-8533 is soldered on package and cannot be expanded, so choose the configuration you need at purchase. Storage is different: the drive sits in M.2 slots and can be upgraded.
How much storage can the GMKtec NucBox K13 hold?
This configuration ships with a 512GB PCIe 4.0 M.2 2280 NVMe SSD. A second M.2 2280 slot is available, and the two together support up to 16TB. SATA drives are not supported.
How many monitors can the NucBox K13 drive?
Up to three 4K displays, using the HDMI 2.1 port and the two USB4 ports, each of which can carry DisplayPort 1.4 video.
Does the GMKtec NucBox K13 support Thunderbolt or an external GPU?
It is not Thunderbolt certified and has no OCuLink port. External GPU docks and fast peripherals connect through the two USB4 ports, which run at 40Gbps and also carry 100W power delivery and display output.
What operating system does the NucBox K13 run?
It ships with Windows 11 Pro preinstalled, and the included HDMI cable and VESA mount cover a basic display and mounting setup out of the box.
