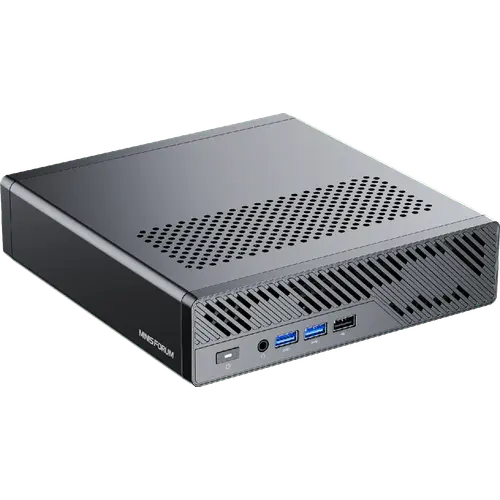

MINISFORUM MS-A2 Review: A 16-Core Zen 5 Home Lab Box Maxed Out At 96 GB
The MS-A2 is a home lab and small server machine that happens to fit on a shelf. Its 16-core, 32-thread Ryzen 9 9955HX boosts to 5.4 GHz inside a metal body 48 mm tall, and this top configuration fills both SO-DIMM slots with the 96 GB of DDR5-5600 the platform can address, alongside a 2 TB NVMe drive and two further M.2 bays. What separates it from a desktop is the wiring: two 10G SFP+ cages and two 2.5GbE ports, plus a physical PCIe x16 slot that can be split into two PCIe 4.0 x4 links. The trade-off is graphics and AI, since the only GPU is an integrated Radeon 610M and there is no NPU at all, so this is a box for virtual machines, storage and services rather than for rendering or local model inference.
- Home labs
- 10G SFP+ networking
- Virtualisation hosts
- Small business servers
- Compact workstations
Pros
- 16-core, 32-thread Ryzen 9 9955HX boosting to 5.4 GHz with a 100W turbo
- Two 10G SFP+ cages on an Intel X710, with link aggregation
- Two 2.5GbE RJ45 ports on separate Realtek and Intel controllers
- 96 GB of DDR5-5600 in two replaceable SO-DIMM slots
- Three M.2 NVMe bays, with U.2 enterprise drives up to 15 TB in the first
- RAID 0 and RAID 1 support across the drives
- Physical PCIe x16 slot wired at PCIe 4.0 x8 and splittable into two x4 links
- Three independent displays from one HDMI 2.1 output and two USB-C ports
- Wi-Fi 6E and Bluetooth 5.2
- 1.78 litre metal chassis at 1.4 kg, with copper heat pipes and phase-change cooling
- Two-year warranty and an HDMI cable in the box
Cons
- No NPU, so on-device AI work falls back to the CPU
- Radeon 610M integrated graphics only, with no discrete GPU option
- The 96 GB already fitted is the platform maximum, so there is no upgrade path
- Two of the three M.2 slots default to PCIe 3.0 x4 until changed in the BIOS
- USB-C is USB 3.2 Gen 2 at 10Gbps, not USB4 and not Thunderbolt certified
- No dedicated DisplayPort connector
- External 240W power brick instead of an internal supply
- No SD card reader, fingerprint sensor or anti-theft lock slot
- No built-in speakers or microphone
- No VESA bracket in the box
Who is the MINISFORUM MS-A2 for?
This is a machine chosen for its ports, its slots and its memory ceiling rather than for desktop speed. The network side is the headline: two 10G SFP+ cages driven by an Intel X710 with link aggregation, plus two 2.5GbE RJ45 ports on different controllers, one Realtek RTL8125 and one Intel I226-V, which is the combination a ten-gigabit storage node, a software router or a virtualisation host actually needs and which very few machines this size offer. The Ryzen 9 9955HX brings 16 Zen 5 cores and 32 threads at up to 5.4 GHz with 64 MB of L3 cache, and MINISFORUM allows it a 100W turbo in this chassis, so the core count is real rather than nominal. Filling both SO-DIMM slots with 96 GB of DDR5-5600 is what makes a stack of virtual machines practical, and the physical PCIe x16 slot, wired at PCIe 4.0 x8 and splittable into two PCIe 4.0 x4 links, leaves room for a network card, a storage controller or a capture card.
What the MINISFORUM MS-A2 offers
Storage is the most flexible part of the specification. Three M.2 NVMe slots sit inside: the first accepts a U.2 enterprise drive of up to 15 TB, the other two take up to 4 TB each and also fit the longer 22110 modules, and the controller supports RAID 0 and RAID 1. This configuration arrives with 2 TB fitted, leaving two bays open. Memory is not soldered, so the 96 GB can be serviced or replaced. Video goes out over one HDMI 2.1 port at up to 8K 60Hz and two rear USB-C ports carrying DisplayPort 2.0 Alt Mode at up to 8K 60Hz or 4K 144Hz, which together drive three independent displays. There are six USB 3.2 ports in total plus one USB 2.0, wireless is Wi-Fi 6E and Bluetooth 5.2, and the front panel carries a 3.5mm combo jack. All of it fits in 196 x 189 x 48 mm and 1.4 kg, cooled by three pure copper heat pipes, two turbo fans and a phase-change material layer, and covered by a two-year warranty. An HDMI cable ships in the box alongside the adapter, the power cord and the manual.
What to know before you buy
The memory ceiling is also the memory limit. This trim already carries the 96 GB the platform supports, so unlike lower configurations it has no headroom left, and paying for it up front is the only way to get there. Graphics and AI are the other gap: the Radeon 610M is a basic integrated part running at 2200 MHz, and the Ryzen 9 9955HX is a Fire Range processor with no neural engine, so anything that expects an NPU has to run on the CPU or on a card in the PCIe slot. Two of the three M.2 slots default to PCIe 3.0 x4 and need a BIOS change to reach PCIe 4.0 x4, which is easy to miss when benchmarking a fresh install. The Type-C ports are USB 3.2 Gen 2 at 10Gbps, not USB4 and not Thunderbolt certified, so a docking setup that requires a certified host is out, and there is no dedicated DisplayPort connector, which means a DisplayPort-only monitor needs a cable or an adapter. Power comes from an external 240W brick rather than an internal supply, so there is one more object on the shelf. The conveniences a consumer mini PC often includes are absent: no SD card reader, no fingerprint sensor, no anti-theft lock slot, no built-in speakers or microphone, and no VESA bracket in the box.
Is the MINISFORUM MS-A2 worth it?
At this configuration the MS-A2 sits at the premium end of its own line, and the case for it rests on what cannot be added later. The two 10G optical cages, the second 2.5GbE controller, the splittable PCIe slot and the three NVMe bays with U.2 support are soldered decisions; the 2 TB drive is not, and can be grown into the free bays. The 96 GB of memory is the part worth scrutinising, because it is both the reason to buy this trim and the reason there is nowhere left to go. For a software router, a ten-gigabit storage head, a container or virtual machine host, or an always-on services box that has to be quiet and small, the specification is aimed precisely at that job and the integrated graphics never become the bottleneck. For creative work, gaming or on-device AI, the money is better spent on a machine with a real GPU or an NPU, because this one has neither.
Frequently asked questions
How much memory does the MINISFORUM MS-A2 take?
Up to 96 GB of DDR5-5600 across two SO-DIMM slots, which is exactly what this configuration already ships. The modules are socketed rather than soldered, so they can be serviced, but there is no capacity left to add.
How many network ports does the MINISFORUM MS-A2 have?
Four wired ports. Two 10G SFP+ cages driven by an Intel X710 and supporting link aggregation, one 2.5GbE RJ45 on a Realtek RTL8125 and one 2.5GbE RJ45 on an Intel I226-V. Wireless is Wi-Fi 6E and Bluetooth 5.2.
What kind of card fits in the MS-A2 PCIe slot?
The slot is physically PCIe x16 and wired at PCIe 4.0 x8, and MINISFORUM supports splitting it into two PCIe 4.0 x4 links, which suits network cards, storage controllers and other expansion cards.
Does the MINISFORUM MS-A2 have an NPU?
No. The specification lists an integrated AMD Radeon 610M and no neural processing unit, because the Ryzen 9 9955HX is a Fire Range part without a Ryzen AI engine. AI workloads run on the 16 CPU cores or on a card fitted in the PCIe slot.
How much storage can the MS-A2 hold?
Three M.2 NVMe slots, with 2 TB fitted in this configuration. The first slot also accepts a U.2 enterprise drive of up to 15 TB, the other two take up to 4 TB each and fit 22110 modules, and RAID 0 and RAID 1 are supported.
Does the MINISFORUM MS-A2 come with Windows?
MINISFORUM lists Windows 11 as the operating system for the MS-A2. The barebone versions of the machine, which ship without memory or storage, are sold without an operating system licence.
