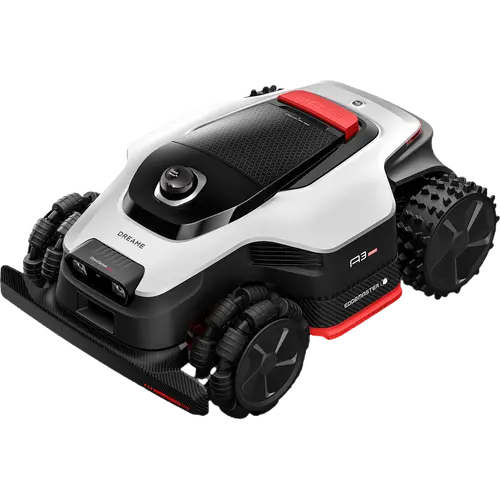

Dreame A3 AWD 1000 Review: Four-Wheel Drive and 3D LiDAR for a Quarter-Acre Lawn
The A3 AWD 1000 is the quarter-acre trim of Dreame's A3 AWD line, rated for 1,000 square metres of grass (about 10,800 sq ft) on a 5 Ah pack that charges in 65 minutes. Its strengths are the chassis and the navigation: four hub motors that climb an 80% slope and cross a 2.2 in obstacle, and OmniSense 3.0 mapping with a 360 degree 3D LiDAR and an AI camera instead of a buried cable or an RTK station. Built-in 4G, GNSS tracking, a lift alarm and a PIN lock round out the security. The spec sheet has real holes: Dreame publishes no runtime per charge, the battery is not a replaceable part, the 4G service is free only for the first year and the smart-home story stops at a community Home Assistant integration.
- Lawns up to a quarter acre
- Steep and uneven ground
- Gardens where RTK loses signal
- Narrow gates and side passages
- Wire-free setup
Pros
- Wire-free and RTK-free: a 360 degree 3D LiDAR plus an AI camera maps the garden
- All-wheel drive through four hub motors, rated to an 80% (38.7 degree) slope
- Crosses obstacles up to 2.2 in and passes through a 23.6 in gap
- EdgeMaster extends the disc to trim under 1.91 in from a wall or bed
- Cutting height set from the app between 1.2 and 3.9 in, in 5 mm steps
- Up to 150 zones, two saved maps and no-go zones
- Rain and Frost Protection pause and restart it on their own
- Built-in 4G with a year of data, GNSS tracking, lift and off-map alarms and a PIN lock
- Human presence alerts, patrol routes and a live camera feed
- IPX6 robot that can be hosed down, plus a three-year warranty
- Home Assistant support through a community integration
Cons
- A single 7.9 in disc, so each pass is narrow
- Rated for about a quarter acre, the smallest area of the line
- No runtime per charge is published, only the 65 minute charging time
- The battery is not a replaceable part
- 2.4 GHz Wi-Fi only, with no 5 GHz radio
- No Apple Home, SmartThings or Matter support, and Alexa and Google Home are not documented
- Home Assistant support comes from a community integration
- The charging station is only IPX4, against IPX6 for the robot
- 4G data is included for one year and then has to be extended
Who is the Dreame A3 AWD 1000 for?
This is the 1,000 square metre trim of the A3 AWD line, which Dreame sells in larger trims of 1,600 and 2,000 square metres, so it is meant for a lawn of about a quarter acre. What it is built for is difficult ground. All four wheels are driven by their own hub motor, two omni wheels at the front and two off-road wheels at the rear, the slope rating is 80% (38.7 degrees) and the obstacle crossing is 2.2 in. Navigation is the other half of the pitch: there is no wire to bury, no beacon to plant and no RTK antenna to mount, because a 360 degree 3D LiDAR turret and a 2 MP AI camera build the map. Two saved maps cover a front and a back garden that do not connect, and up to 150 zones can each carry their own height, frequency and mowing pattern.
What the Dreame A3 AWD 1000 offers
The deck is a single 20 cm (7.9 in) disc carrying three pivoting blades, and the cutting height runs from 1.2 to 3.9 in, set from the app in 5 mm steps. EdgeMaster extends the disc outward along a boundary to keep the disc-to-edge distance under 1.91 in. Obstacle handling is camera-led: more than 300 recognized obstacle categories, animal activity zones and a low-speed safety mode, with a physical Stop button on the top cover that needs the PIN code before the robot will move again. Two weekly schedules are generated from the mapped lawn size, one for spring and summer and one for autumn and winter, and Rain Protection and Frost Protection pause and restart the robot on their own, the second below 42.8 F and resuming above 51.8 F. Security is unusually complete: a built-in 4G Link module with a year of data included, GNSS positioning shown on a map in the app, a lift alarm and an off-map alarm that lock the machine until a PIN is entered, a human presence alert, a patrol mode and a live feed from the front camera. The robot is IPX6, so it can be rinsed with a hose, and the warranty is three years.
What to know before you buy
The narrow deck is the first trade-off: a 7.9 in disc makes many passes, and Dreame states the rated area per day in standard, efficient and rush modes rather than per hour. The spec sheet has gaps too. Dreame publishes the 5 Ah capacity and a 65 minute charge time on the 3 A charger but no runtime per charge, which is the number that decides how a big lawn is split up, and the battery is not a replaceable part: the only component the manual asks you to replace is the blade set, every 6 to 8 weeks. Networking is 2.4 GHz Wi-Fi only, with Bluetooth for pairing and for mapping without Wi-Fi. The 4G service that keeps the app connected away from Wi-Fi comes with a year of data and has to be extended afterward. The smart-home side is thin: there is no Apple Home path, no SmartThings and no Matter certification, and Dreame advertises no Alexa or Google Home support for this model. Home Assistant is covered by a community integration installed through HACS, which signs in to the Dreamehome account and lists this exact trim as supported. The charging station is rated IPX4 against IPX6 for the robot, so it wants a sheltered spot.
Is the Dreame A3 AWD 1000 worth it?
It is a premium-priced machine, and what the money buys is the chassis and the sensing rather than a wide deck: four-wheel drive to an 80% grade, 2.2 in obstacle crossing, wire-free and antenna-free LiDAR mapping, an IPX6 body, built-in cellular with GNSS tracking and a three-year warranty, in a 16.1 kg body that can pass through a 23.6 in gap. On a small, steep, shaded or awkwardly shaped garden that is a short list of competitors. The counterweights are the missing runtime figure, the sealed battery, a 4G service that is free only for a year and an ecosystem story that comes down to one community integration. If the ground is the problem and the acreage is small it makes sense; if the lawn is wide, flat and open, a wider deck may be the better use of the money.
Frequently asked questions
Does the Dreame A3 AWD 1000 need a boundary wire or an RTK antenna?
No. OmniSense 3.0 combines a 360 degree 3D LiDAR with an AI camera to build the map itself, so there is nothing to bury and no reference station to mount. Setup is a mix of driving the boundary from the app and letting the robot auto-map the rest.
How big a lawn can it handle?
Dreame rates the 1000 trim at 1,000 square metres, which is roughly 10,800 sq ft, or a quarter acre as the store and the manual put it. The 1,600 and 2,000 square metre versions of the same mower are rated higher.
Can it mow slopes and rough ground?
Yes, that is its main selling point. Four hub motors drive all four wheels, the rating is 80%, which is 38.7 degrees, and it crosses obstacles up to 2.2 in. The robot stops and asks for its PIN code once it tilts past 39 degrees.
Does it stop when it rains?
Yes. Rain Protection sends the robot back to the station when it rains, with a drying delay you set in the app. Frost Protection parks the mower and stops charging below 42.8 F, then resumes above 51.8 F.
How is it controlled, and does it work with Home Assistant?
Day to day it is the Dreamehome app over Wi-Fi, Bluetooth or the built-in 4G link, plus the buttons on the machine itself. A community integration installed through HACS signs in to the same Dreamehome account and exposes the mower to Home Assistant as a lawn mower entity, and its supported devices list names this trim.
Can it be tracked if it is stolen?
It has a built-in GNSS receiver plus a 4G Link module, so the app can show its position on a map without relying on garden Wi-Fi. Lifting it or taking it off the mapped area sounds an alarm and locks the machine, and a PIN code is needed to start it again.
Does it need a subscription?
Not to mow. The built-in 4G service that keeps the app connected without Wi-Fi comes with a year of free data, after which it has to be extended through Dreame.
