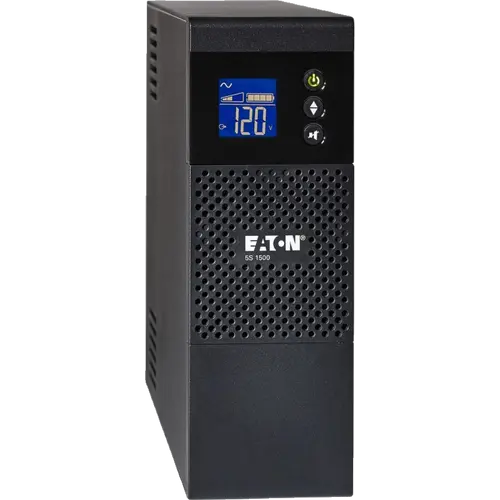

Eaton 5S 1500LCD Review: A Slim, Business-Grade 1500 VA Backup for the Desk and the Home Network
The Eaton 5S 1500LCD is a 1500 VA / 900 W line-interactive UPS in an unusually slim tower that keeps a desktop PC, a NAS or a router, switch and modem running through short outages and voltage dips. Owners trust its build quality, like the clear LCD and report that its USB HID port works smoothly with Synology, Unraid and Network UPS Tools. The trade-offs are a simulated sine wave on battery, a hum some owners can hear, and battery leads that ship disconnected. For office PCs and home network gear it is a solid, well-made pick; for active PFC power supplies a pure sine wave model fits better.
- Home offices
- Home network and NAS backup
- Home Assistant and Unraid users
- Tight spaces under a desk
Pros
- 1500 VA / 900 W line-interactive design with Automatic Voltage Regulation
- Very slim 3.4-inch tower that can also serve as a monitor stand
- LCD showing load, battery level and input and output voltage
- USB HID port read by Windows, macOS, Linux, NAS units and Home Assistant via NUT
- Ethernet and coaxial surge protection
- EcoControl outlets switch off idle peripherals
- Toolless user-replaceable battery and a 3 year warranty including batteries
Cons
- Simulated sine wave on battery, not suited to active PFC power supplies
- Audible hum or whine reported by some owners, especially on battery
- Batteries ship disconnected and must be connected behind the front cover
- Battery outlets are spaced closely, so bulky adapters block neighbours
- No USB charging ports, no network card slot and no phone app
Who is the Eaton 5S 1500LCD for?
It suits anyone who wants battery backup and surge protection for a desktop computer, a NAS or the network gear at the heart of a smart home, in a tower only 3.4 inches wide that can also lie flat as a monitor stand. Its 900 W rating covers a typical workstation or a small server with a router and switch beside it. At full load Eaton quotes about 2 minutes of runtime, enough to shut down cleanly, while lighter loads last far longer: one owner reports roughly 15 minutes at about 300 W, and Eaton's own table lists 71 minutes at 120 W. Eaton's manual is clear that it is meant for computers and electronics, not for lighting, heating or household appliances.
What buyers love
Build quality is the recurring theme: several owners who work with large commercial UPS systems or already run an Eaton rack unit bought this one for the brand's reputation, and some came back for a second unit. They describe it as silent on mains power in normal operation and reliable through flickers and full outages, including storms and hurricanes. The LCD showing load, battery level and input and output voltage gets praise, and so does the easily replaceable battery. NAS and server owners highlight the USB connection: Unraid and Synology read it directly, and Network UPS Tools supports it, so several machines can shut down from one unit.
What to know before you buy
On battery the output is a simulated sine wave, not a pure one, which owners confirm: one could not run a device whose manual demanded a pure sine wave. Some owners hear a buzz or whine, especially on battery, and one replaced a unit over a constant hum. The batteries ship disconnected, so you have to open the front cover and plug in the battery connector before first use, a step several buyers missed. The five battery outlets sit close together, so a bulky plug-in adapter can block its neighbours. A couple of owners saw the batteries wear out after about two years under heavy use, and a gaming PC near the 900 W limit proved too much for one unit. There are no USB charging ports, no network management slot and no phone app, and Eaton publishes neither a joule rating nor a recharge time.
Does the Eaton 5S 1500LCD work with Home Assistant?
Yes, through Network UPS Tools. NUT lists the Eaton 5S over USB as supported by its usbhid-ups driver, and the Home Assistant NUT integration then shows battery charge, load and status and can trigger automations when the power fails. The same USB HID port is recognized by Windows, macOS and Linux power settings, by Eaton's free UPS Companion software and by NAS systems such as Synology and Unraid.
Is the Eaton 5S 1500LCD worth it?
It packs Automatic Voltage Regulation, a 5 ms transfer time, Ethernet and coaxial surge protection, EcoControl outlets that cut power to idle peripherals, cold start and a 3 year warranty that covers the batteries into a compact, well-built tower. Buyers who chose it for reliability tend to stay happy with it. If your computer has an active PFC power supply, if silence on battery matters, or if you want USB charging ports, look at a pure sine wave or more feature-rich model instead.
Frequently asked questions
Is the Eaton 5S 1500LCD a pure sine wave UPS?
No. Eaton lists the 5S as a simulated sine wave on battery. On mains power it passes utility power through, but on battery equipment with an active PFC power supply may not run reliably. Eaton's 5SC line is the pure sine wave alternative.
How long does the Eaton 5S 1500LCD run on battery?
Eaton's runtime table lists about 2 minutes at the full 900 W, 13 minutes at 420 W and 71 minutes at 120 W. A router, modem and switch drawing a few dozen watts run far longer than a desktop PC.
How many outlets does the Eaton 5S 1500LCD have?
Ten NEMA 5-15R outlets: five with battery backup and surge protection, and five with surge protection only, some of which are EcoControl outlets that switch off when the computer on the master outlet is idle.
Can I replace the battery myself?
Yes. The internal batteries are toolless and user-replaceable from the front, although they are not hot-swappable, so the UPS has to be switched off first.
Does the Eaton 5S 1500LCD work with a Synology or Unraid NAS?
Yes. Its USB HID port is recognized by NAS systems such as Synology and Unraid, which can shut themselves down on low battery, and Network UPS Tools supports the 5S for sharing that signal with other machines.
