Sonoff Hydro DUO Review: Two Independent Watering Zones on One Zigbee Valve
A dual-channel hose timer with a real flow meter, volume-based schedules and an IP65 body, built for a Zigbee smart home rather than for a phone on its own.

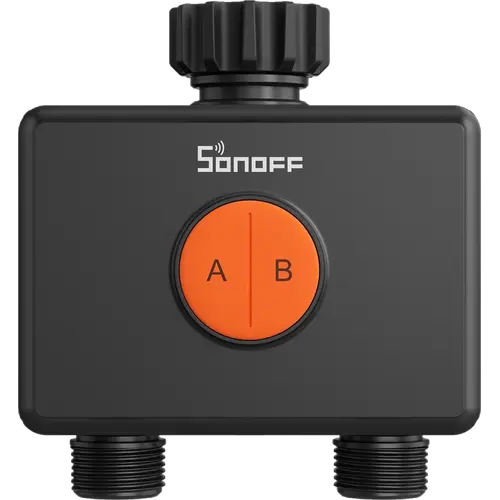

The Hydro DUO is Sonoff's dual-channel take on the smart hose timer: one valve body, two outlets, and a separate watering plan for each of them, which is exactly what separates it from the single-zone timers it sits beside. A built-in flow meter turns those plans into volume-based watering instead of guesswork on a clock, and the spec sheet backs it with an IP65 rating, per-zone usage history, a child lock and alerts for leaks, water shortage, freezing and a flat battery. The trade-off is that it is a Zigbee 3.0 end device: it needs a coordinator to reach any platform, and Apple Home is out of reach entirely. For a garden with two zones to water and a hub already running, it packs an unusual amount of irrigation control into a budget-priced valve.
- Two-zone garden irrigation
- Home Assistant setups
- Zigbee smart homes
- Water-usage tracking
- Budget buyers
Pros
- Two outlets, each with its own independent watering plan
- Up to six schedules per zone, twelve in total, by duration or by volume
- Built-in flow meter reading 2 to 45 litres per minute enables capacity-based watering
- Per-zone usage charts for up to six months, viewable and downloadable
- Rain delay, monthly seasonal multipliers and weather-based skipping of the next 24 hours
- Alerts for low battery, water shortage, leakage and freezing risk
- Child lock disables the local buttons while leaving app control available
- IP65 rated for outdoor use and covered by a two-year warranty
- Works with Home Assistant over Zigbee2MQTT or ZHA, plus Alexa, Google Home and SmartThings
- Bluetooth proximity mode gives basic control when no Zigbee gateway is in range
- Dual power: four AA batteries or a Type-C supply
Cons
- Zigbee 3.0 end device, so a coordinator or gateway is required for anything beyond proximity mode
- No Wi-Fi on either band, no Thread and no Z-Wave
- Apple Home is not supported, because the water valve device type is not one it renders
- Not a Matter accessory on its own, it only reaches Matter through a Sonoff bridge
- About a year of battery life on four AA cells, so it is a yearly maintenance item
- ZHA needs Sonoff's downloadable script before the full feature set appears
Who is the Sonoff Hydro DUO for?
This is a tap-mounted valve for someone who has two things to water on different rhythms: a lawn and a vegetable bed, drip lines and a sprinkler, a garden and a pool top-up. The two outlets are the whole point, since each one carries its own schedule instead of splitting one timer across a Y-splitter. It speaks Zigbee 3.0 as an end device, so it expects a coordinator to already be in place, whether that is a Sonoff gateway, a Zigbee dongle running Zigbee2MQTT or ZHA in Home Assistant, an Echo acting as a Zigbee hub for Alexa, or an Aeotec Smart Home Hub for SmartThings. Bluetooth is there as a short-range proximity mode for the case where the tap sits beyond the mesh, but it is a fallback rather than the way the valve is meant to be run. Weight and size are those of a normal hose timer, and the IP65 rating means it is built to live outdoors rather than in a covered box.
What the Hydro DUO offers
The headline capability is independent scheduling per zone: up to six smart schedules on each outlet, twelve in total, each one set either by duration or by capacity. Capacity mode is what the flow meter buys you, because watering by volume delivers the same amount of water whether the pressure is high or low, which a plain timer cannot promise. That same meter reads a 2 to 45 litre per minute range and feeds the consumption tracking, so daily, monthly and half-yearly charts of duration and volume per zone can be viewed and downloaded for up to six months, which is how you find a line that is quietly drinking more than it should. Around that sit the practical touches: rain delay, monthly seasonal multipliers, weather-based skipping of the next 24 hours, a user-set failsafe time limit so a low-pressure cycle stops instead of running on, and a child lock that disables the local buttons while leaving app control alone. Abnormality alerts cover low battery, water shortage below 5 litres per minute, leakage detected after the valve has closed, and freezing risk. Sonoff backs the hardware with a two-year warranty.
What to know before you buy
The valve has no Wi-Fi on either band, no Thread and no Z-Wave, so there is no way to put it on a network without a Zigbee coordinator. That is normal for a battery-powered irrigation valve and it is what keeps a year of runtime on four AA cells realistic, but it does mean the hub is a purchase decision rather than an afterthought. Platform reach is uneven for the same reason. Home Assistant is well covered through Zigbee2MQTT, and through ZHA once Sonoff's published script is added, while Alexa and SmartThings arrive by pairing the valve straight to an Echo or an Aeotec hub, and Google Home comes through a Sonoff Matter bridge or eWeLink account linking. Apple Home is the exception and it is a hard no: the Matter specification's water valve device type is not something the Home app renders, and Apple Home has no Zigbee radio to fall back on, so there is no route in. Matter itself only appears through a Sonoff bridge such as the Zigbee Bridge Ultra, iHost or NSPanel Pro, since the valve is not a Matter accessory on its own. Finally, plan on replacing four AA batteries roughly once a year.
Is the Sonoff Hydro DUO worth it?
Measured against the single-outlet timers in the same price bracket, the Hydro DUO doubles the zones and keeps the flow meter, which is the combination that usually costs considerably more from an established irrigation brand. Volume-based watering, per-zone history, weather skipping and a full set of abnormality alerts are features you would expect to pay a premium for, and the IP65 body and two-year warranty suggest it is meant to stay on the tap through a season rather than be brought in every week. The value only breaks down in two situations: if there is no Zigbee coordinator in the house and no plan to add one, or if the smart home runs on Apple Home, where this valve simply cannot appear. Everywhere else, and particularly on Home Assistant, it is a lot of irrigation for the money.
Frequently asked questions
Does the Sonoff Hydro DUO need a hub?
For normal use, yes. It is a Zigbee 3.0 end device, so it has to join a Zigbee network hosted by a coordinator: a Sonoff gateway, a Zigbee dongle running Zigbee2MQTT or ZHA, an Echo that acts as a Zigbee hub, or an Aeotec Smart Home Hub. There is also a Bluetooth proximity mode for direct phone control when the tap is out of mesh range, but it is a fallback rather than a replacement for a hub.
Can the two outlets run different watering schedules?
Yes, that is the reason the DUO exists. Each channel carries up to six of its own smart schedules, twelve across the valve, and each schedule can be set by duration or by volume. Rain delay, monthly seasonal multipliers and weather-based skipping apply per zone as well, so a lawn and a vegetable bed can be watered on completely different rhythms from one valve body.
Does the Hydro DUO work with Home Assistant?
Yes. Sonoff documents it on both Zigbee2MQTT and ZHA. Zigbee2MQTT exposes the fuller feature set, while ZHA needs Sonoff's published script installed before scheduling and flow data show up rather than just open and close.
Does it work with Apple Home?
No. Apple Home does not render the water valve device type, and the valve has no radio Apple Home can talk to directly, so neither a native path nor a bridged one exists. Sonoff's Matter bridges do republish it, and Google Home is the platform that reads the valve device type that way.
Can it measure how much water it uses?
Yes. A built-in flow meter reads between 2 and 45 litres per minute, which is what allows watering by volume rather than by time and what feeds the usage tracking. Daily, monthly and half-yearly charts of duration and volume are kept per zone and can be viewed and downloaded for up to six months.
How is the Hydro DUO powered and can it stay outside?
It runs on four AA batteries for roughly a year, and it also accepts a Type-C supply, which is the option to use with a solar panel that has its own battery. The body is rated IP65, so it is protected against dust and low-pressure water jets from any direction and is designed to stay on the tap outdoors.
